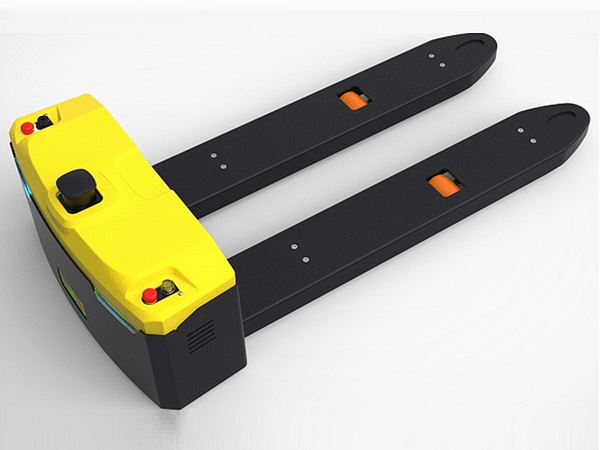

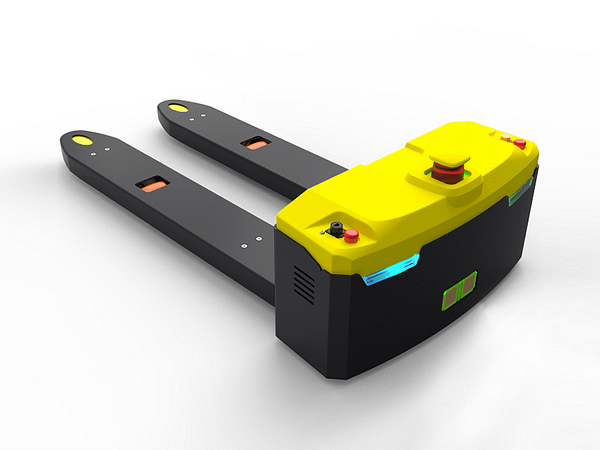

Pallet Jack/Smarter Lidar AGV

Availability:

1 in stock


  • Movement of pallets can be triggered manually or automatically by WMS system.
  • Automatically returns to charging station when battery power is low or not in use.
  • Able to communicate with shutter doors via WIFI.
  • 4G/ WIFI communication with RMS.
  • No infrastructure required to map work area
  • GPS and 3D LIDAR provide simultaneous localization and mapping
  • Emergency Stop buttons to prevent collisions or accidents

3,904,120 4,483,200

1 in stock

wws Maya / Pre-sale Questions Need Help? Contact Us via WhatsApp
   Buy Now

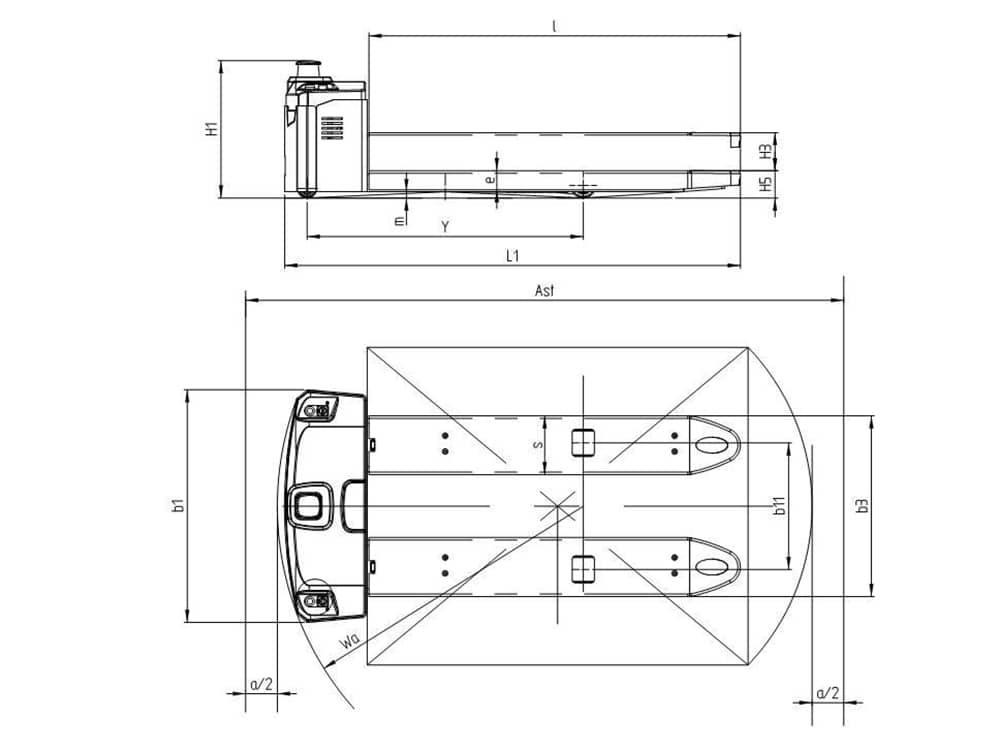

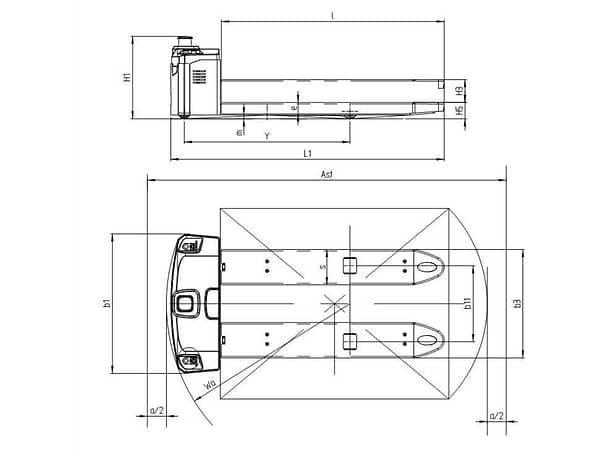

Model

SA10

Navigation

Laser / Lidar

Load

1000 KG (Q)

Load Center

600 mm (C)

Axis Distance

875 mm (Y)

Tire

Polyurethane

Driving Wheel

φ80 mm

Loading Wheel

φ60 mm

Front Wheel Distance

350 / 400 / 510 mm (b11)

Overall Height

450 mm (h1)

Lifting Height

70 mm (h3)

Fork

85 mm (h5)

Overall Lenght

1460 mm (L1)

Overall Width

735 mm (b1)

Fork size

186x60x1170 mm (s / e / l)

Distance Fork

520/ 570/ 680 mm (b3)

Distance to ground(min.)

20 mm (M)

Right-angle Stacking Chennal

1900 mm (Ast)

Zero Turning Radius

980 mm (Wa)

Speed

0.7/0.6 – m/s

Lift

150 / 90 mm/s

Down

100 / 140 mm/ s

Gradeability

1-Apr %

Brake

Electromagnetic

Driving motor

0.6 kw

Lift Moto

0.8 kw

Lithium battery

48 / 24 – V/Ah

Battery Weight

30 kg

Total Weight(incl. Battery)

110 kg

Steering Model

Electric Differential

Charging

Auto

Noise

<70 dB(A)
