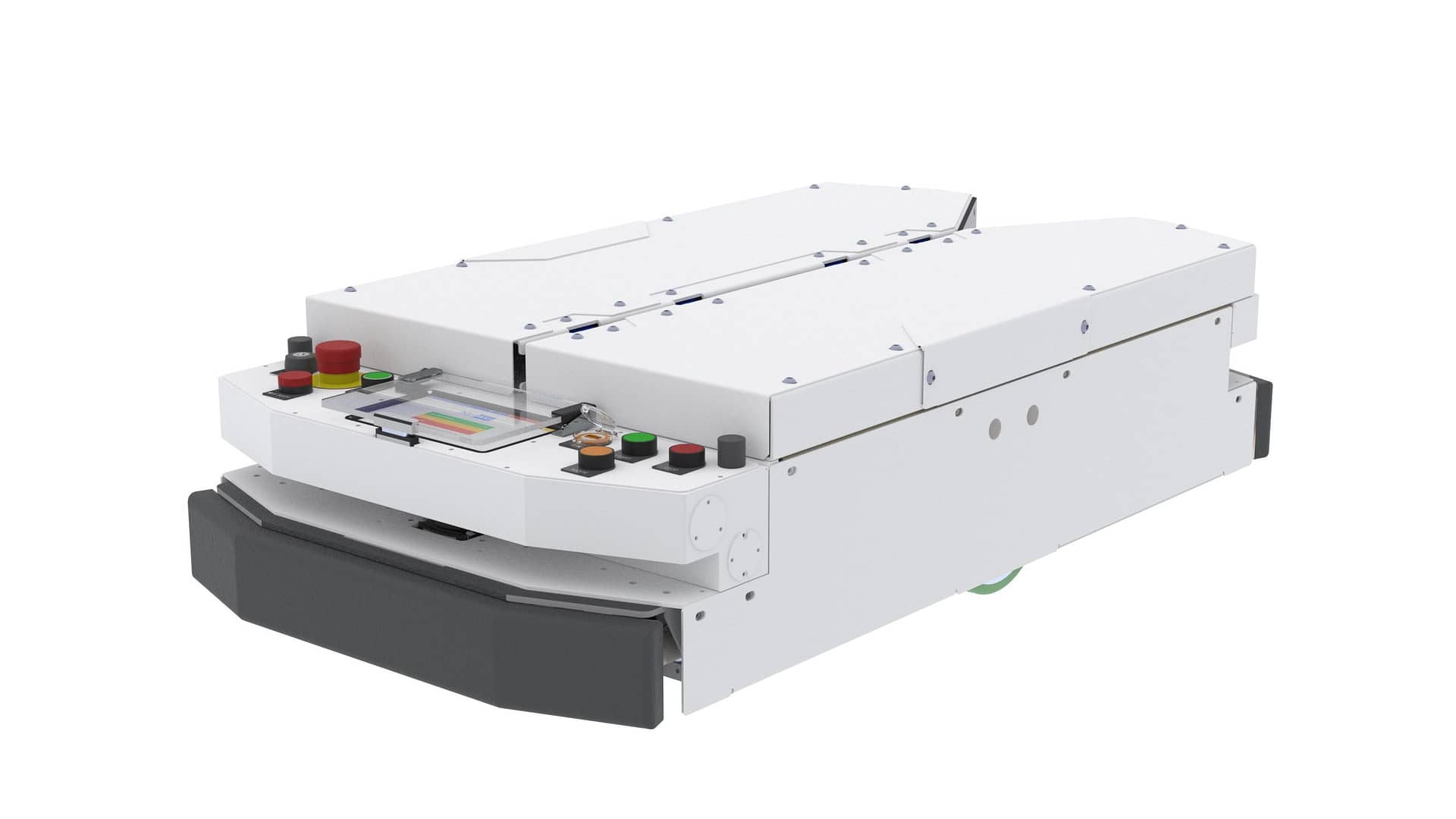

Magnetic Stripe AGV

Availability:

1 in stock


Zalpha MG

  •  Zalpha Series Magnetic Strip Guidance AMR – Standard Size Model
  •  Zalpha Series Magnetic Strip Guidance AMR is a cost-effective.
  • User-friendly and flexible mobile robot used to transport goods in various kind of industry.
  •  The robot is using Magnetic strip to navigate around and is easy to be set up, programmed and implemented.
  • There are various types of size and payload can be chosen to fit in different application.

Weight 120 kg
Dimensions 103 × 20 × 12 cm
Payload

100KG, 300KG, 500KG, 1000KG

Travelling Diection

Forward 90 degree rotate, Reverse 180 degree rotate

Max Speed

60 m/min, 40 m/min

Drive Method

Differential Drive

Turning radius

Zero (0) Degree

Motor Type

Industrial Servo Motor with Close Loop Drive

Battery type

LiFePO4 Battery, 25.6V 65A

Running time

10 h

Charging time

4 h

User Interface

7 Inch Touchscreen and push buttons

WiFi Freq

2.4/5 Ghz

Additional I/O

8 Inputs & 8 Outputs

OS

NavWiz Software (Linux Based)

Operation Mode

Standalone / Fleet Management System (FMS)

5m Adjustable range Laser scanner

1 unit

Bumper Switch

2 unit

Emergency Switch

1 unit

External safety input

1 unit

safety Indicator

Color LED Lighting, Music Playback, Alarm Sound

Magnetic sensor

2 units

Castor Wheel No

2 units

Castor Wheel size

75 mm

Drive Wheel No

2 units

Drive Wheel size

150 mm
