-13%
,

Trackless/Lidar AGV

Availability:

1 in stock

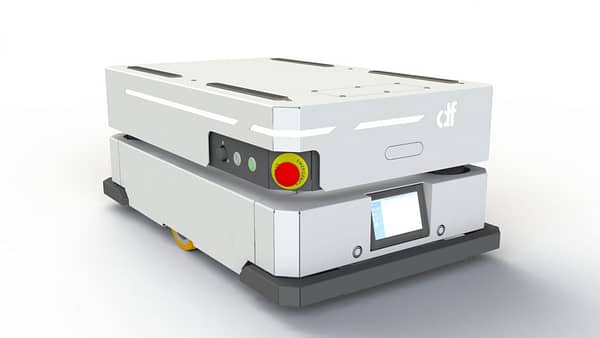

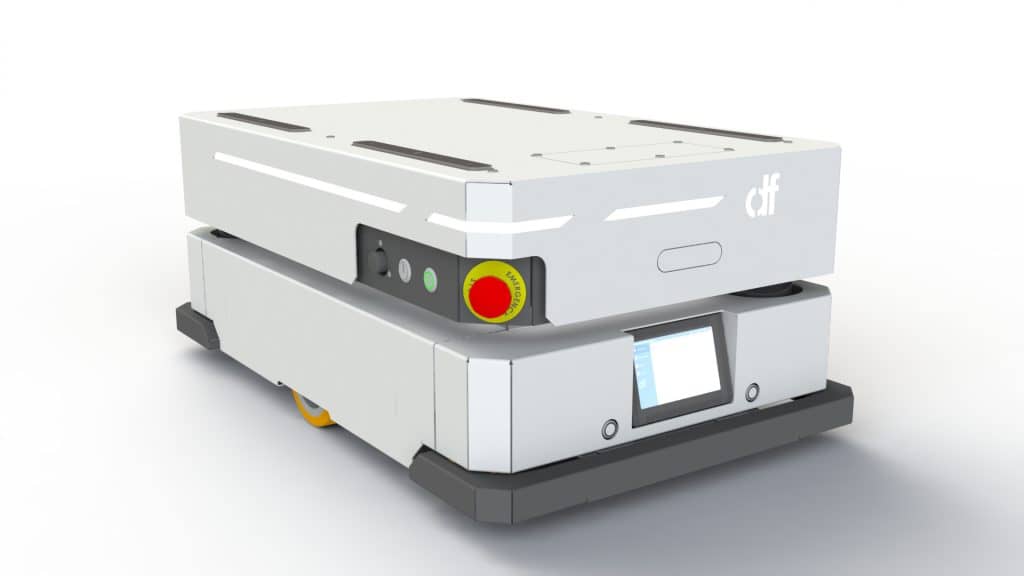

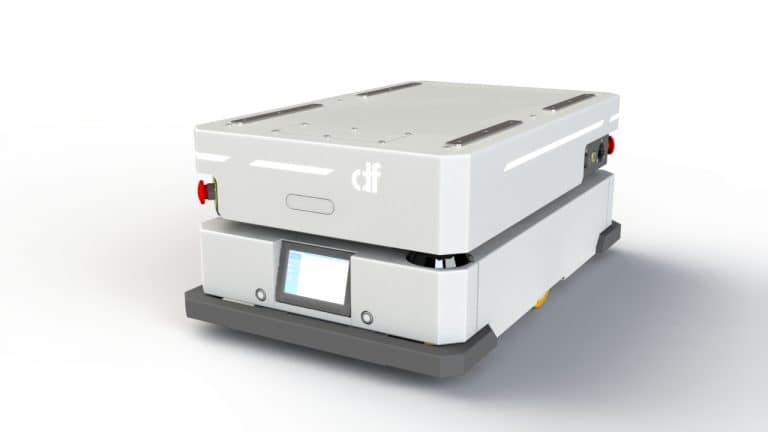

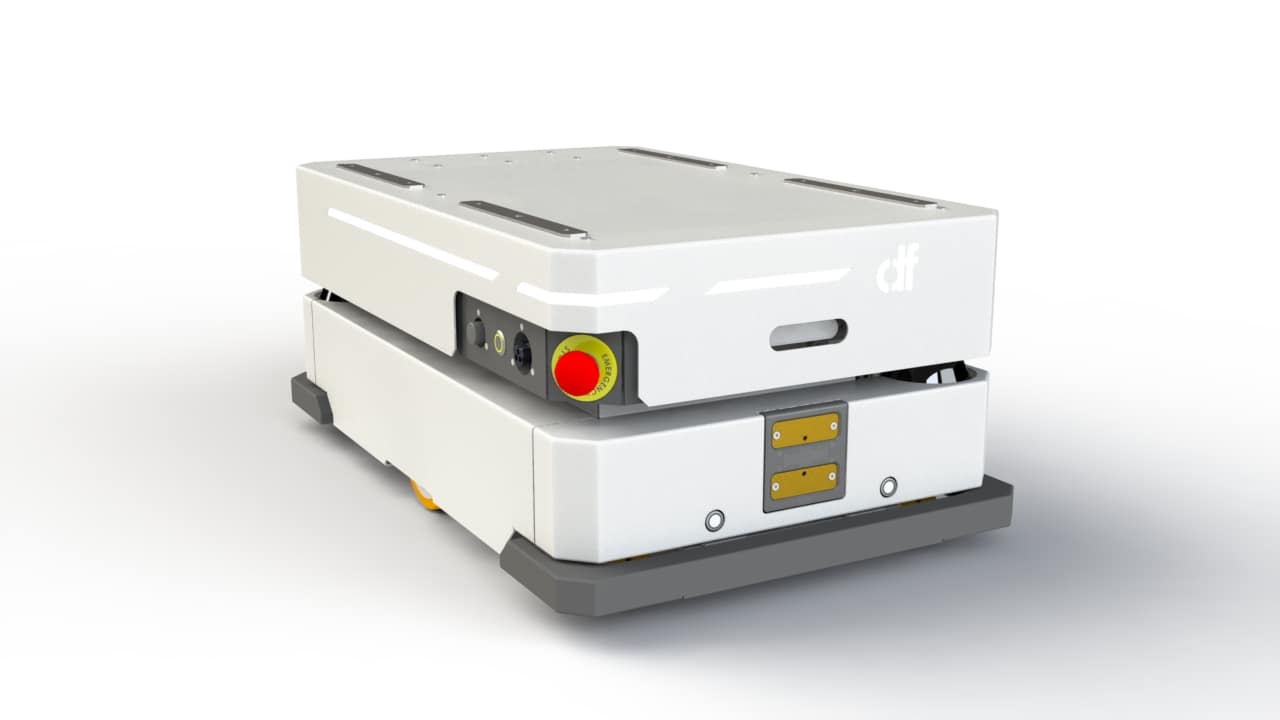

Qube Series Laser Guidance AMR is a cost-effective, user-friendly and flexible mobile robot that automates internal transportation in various kind of industry. This robot is using Laser-based Natural Feature Navigation to navigate around swiftly. Providing with built-in program that easy to setup, QUBE is ready to go!

3,194,2803,904,120

wws Maya / Pre-sale Questions Need Help? Contact Us via WhatsApp

Weight 80 kg
Dimensions 85.0 × 50.0 × 35.0 cm
Payload

1000KG, 100KG, 300KG, 500KG

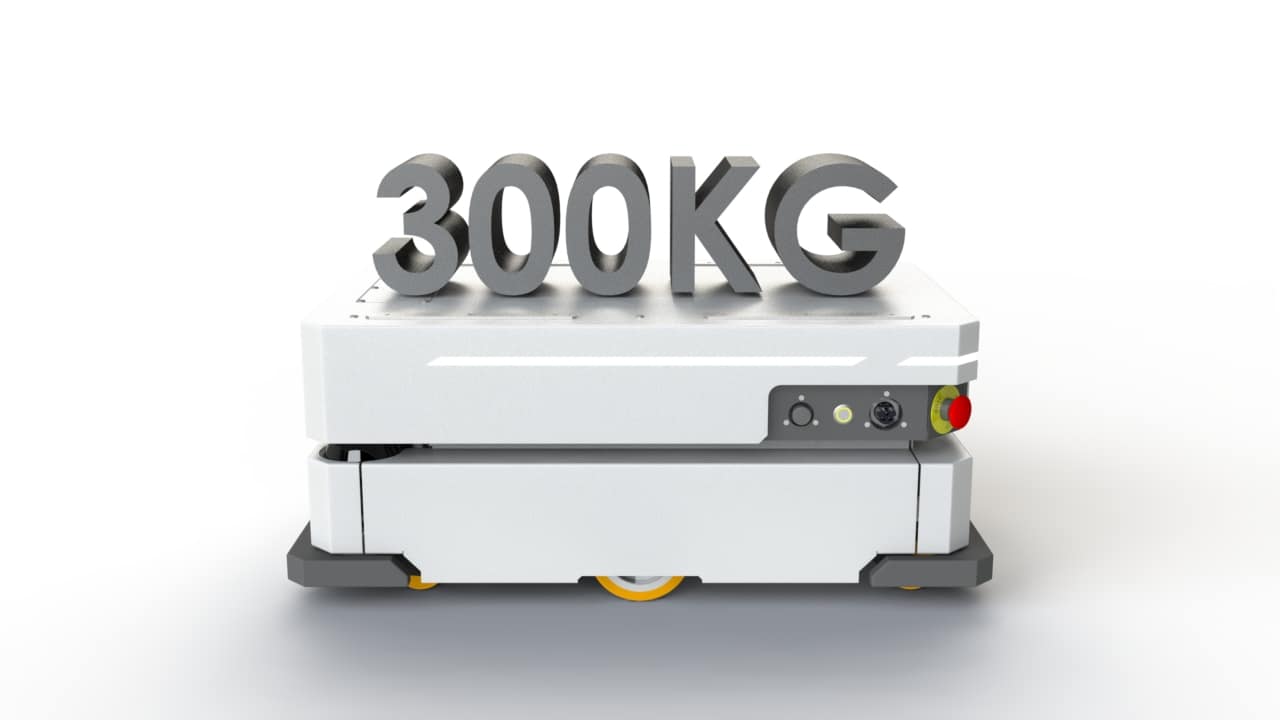

Carry payload

300 KG

Navigation

Magnetic tapes guided / LIDAR / Hybrid

Max Speed

1.5 m/s

Stopping Accuracy

Magnetic tape: ± 10, ± 2 degree
Laser Sensor (Natural Feature): ± 50, ± 2 degree
Laser Sensor (Marker/Docking): ± 10, ± 1 degree (Unit- mm)

Travelling Diection

Forward, Backward, spinturn

Drive Method

Differential drive with 2 wheels

Turning radius

zero, spintum with 955mm dia

Motor Type

Industrial Servo Motor with Close Loop Drive

Length

850 mm

Height(From Ground)

Base : 350 mm

Width

500 mm

Battery type

LiFePO4 Battery, 25.6V, 40Ah, 1C

Running time

8-10 (h)

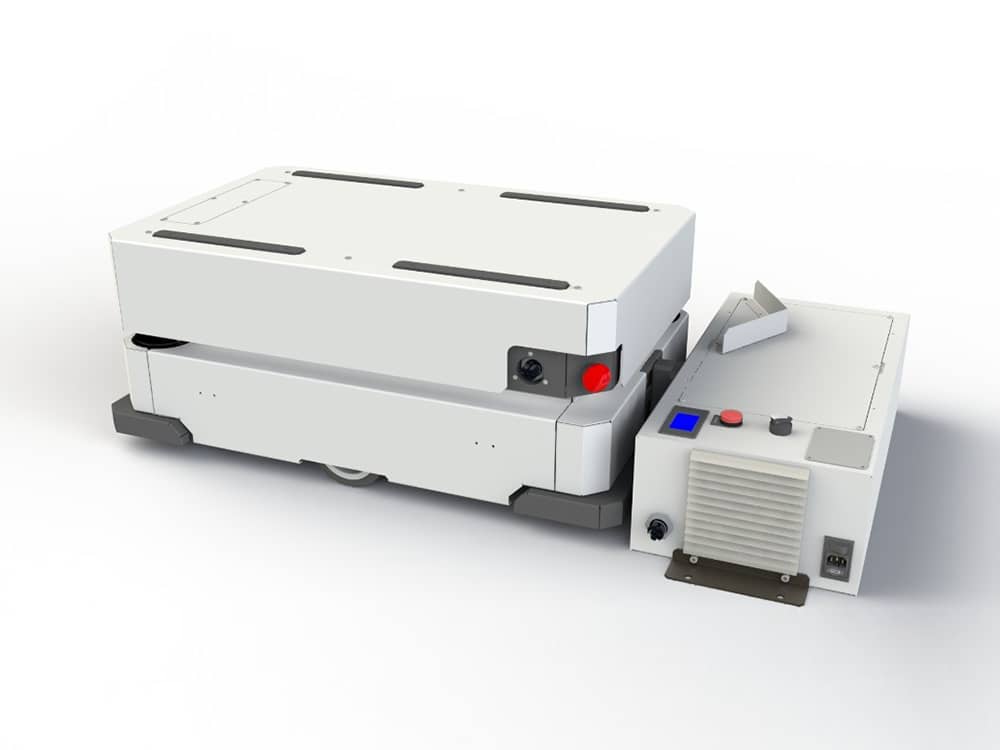

Charging Option

Automatic & Manual

Onboard Interface

5 inch, 800×400 pixels, Capacitive Touch screen

WiFi Freq

2.4/5 GHz

OS

Magnetic tapes guided: NavWiz

Operation Mode

Laser guided: NavWiz X

5m Adjustable range Laser scanner

1 Unit

Bumper Switch

2 Units

Emergency Switch

2 Units

safety Indicater

360 RGB LED lighting
Music Playback
Alarm sound

3D Obstacle sensor

1 Unit

Ultrasonic sensor

4 Units

Castor Wheel No

2 Units

Castor Wheel size

75 mm

Drive Wheel No

2 Units

Drive Wheel size

150 mm
