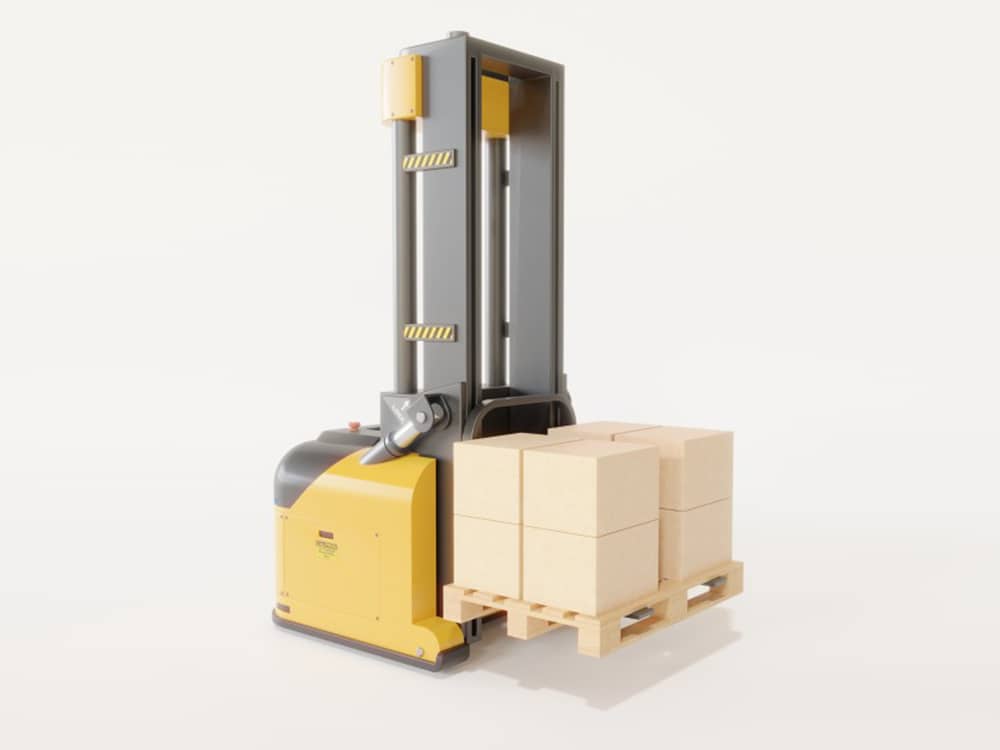

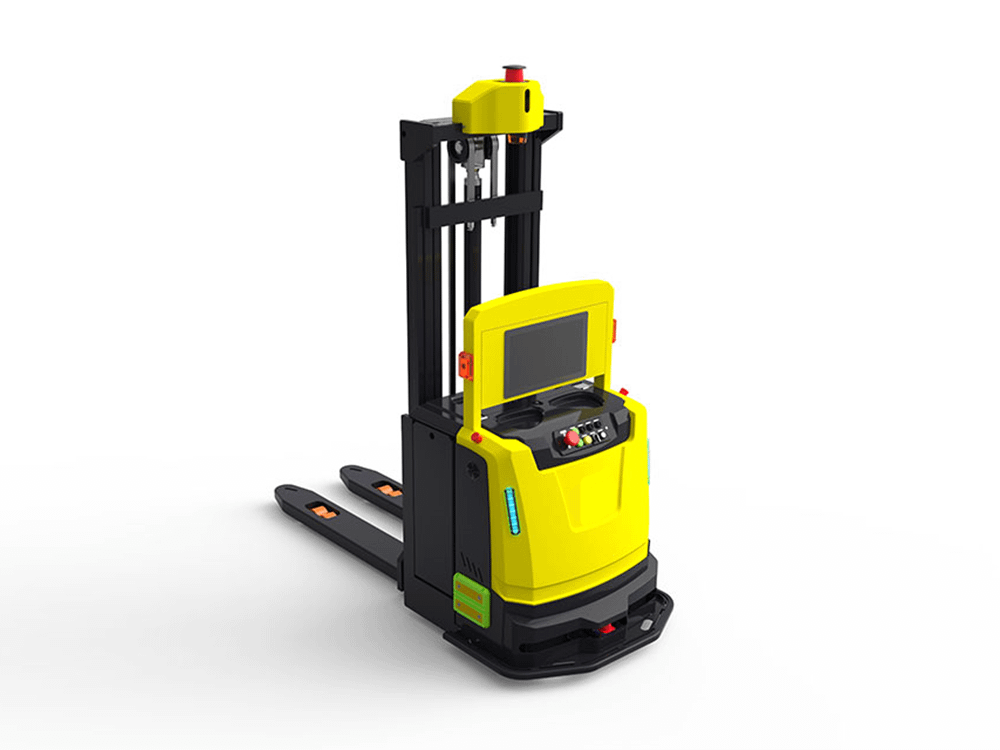

Autonomous ForkLift-Lidar AGV


  • Movement of pallets can be triggered manually or automatically by WMS system.
  • Automatically returns to charging station when battery power is low or not in use.
  • Able to communicate with shutter doors via WIFI.
  • 4G/ WIFI communication with RMS.
  • No infrastructure required to map work area.
  • GPS and 3D LIDAR provide simultaneous localization and mapping
  • Emergency Stop buttons to prevent collisions or accidents.

5,323,800 5,977,600

wws Maya / Pre-sale Questions Need Help? Contact Us via WhatsApp
   Buy Now

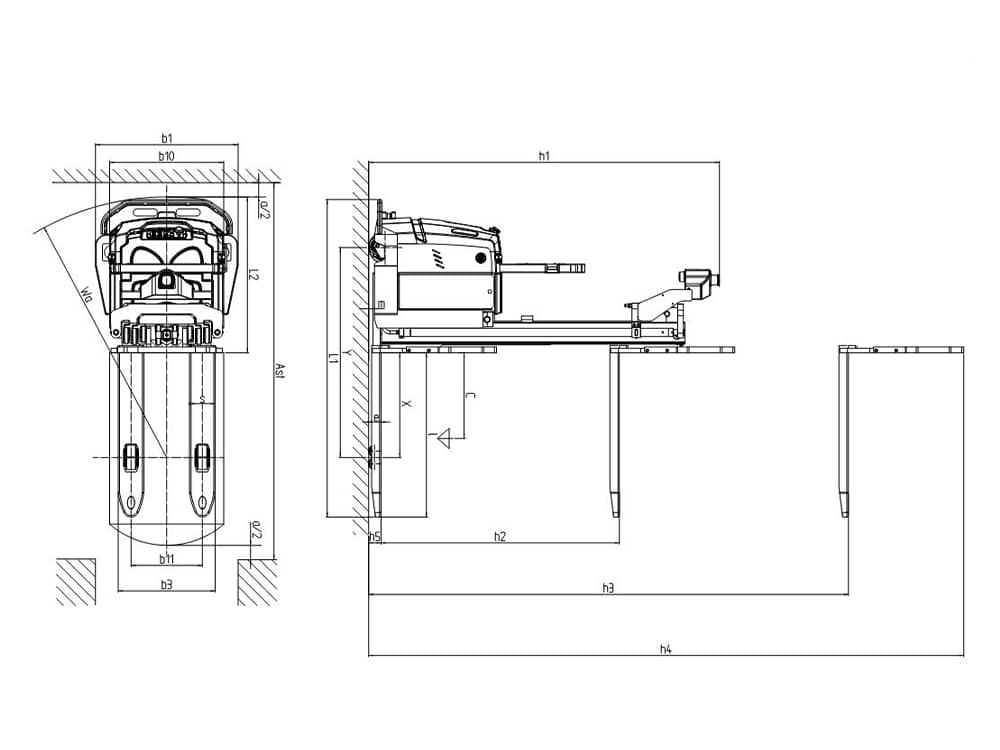

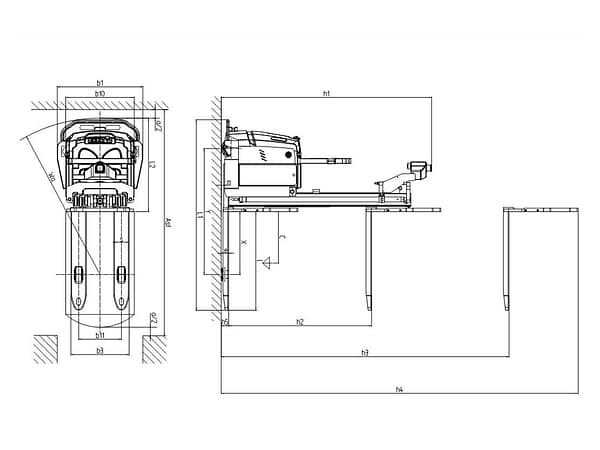

Model

RAS20

Power

Battery

Load

2000kg – 6000kg (Q)

Load Center

600 mm (C)

Fork overhang

730 mm (X)

Axel Distance

1470 mm (Z)

Vechicle Weight

1320 KG

Axel Load full(F/R)

2310 /1240 KG

Axel Load empty(F/R)

494/1055 KG

Tire

Polyurethane

Driving Wheel

φ230×82 mm

Driven wheel

φ82×70 mm

Auxilary wheel

φ125×60 mm

QTY of wheel

1x-2/4

Distance of Front Wheel

800 mm (b11)

Distance of Rear Wheel

500 mm (b10)

Lifting Height

200 – 6000 mm

Height of Fork from ground

86 mm (H5)

Total Length

2222 mm (L1)

Total Width

1090 mm (b1)

Width of Body

1000 mm (b2)

Size of Fork

180/66/1150 mm (s/e/l)

Width of Fork

680 mm (b3)

Distance from Ground(Min)

30 mm (M)

Stacking Aisle right angle pallet 1000X1200 a=200

2640 mm (Ast)

Turning Radius

1830 mm (Wa)

Speed Full/Empty

4.6/5.2 km/h

Lifting speed Full/Empty

90/120 mm/s

Down speed Full/Empty

125/80 mm/s

Max. Gradeability Full/Empty

5/8 %

Brake

Electric / Mechanical

Positioning accuracy

10 mm

Driving Moto

AC 1.5 kw

Lifting Moto

DC 3.0 kw

Lithium Battery

24/200 (200/240/280) V/Ah

Battery Weight

200/205/295 KG

Noise

< 70 dB(A)
